JD FUZR – Accurate fuzing of 2 blanks
A machine manufactured to perfection by JD Engineers in the Netherlands.
The advantage of the JD FUZR

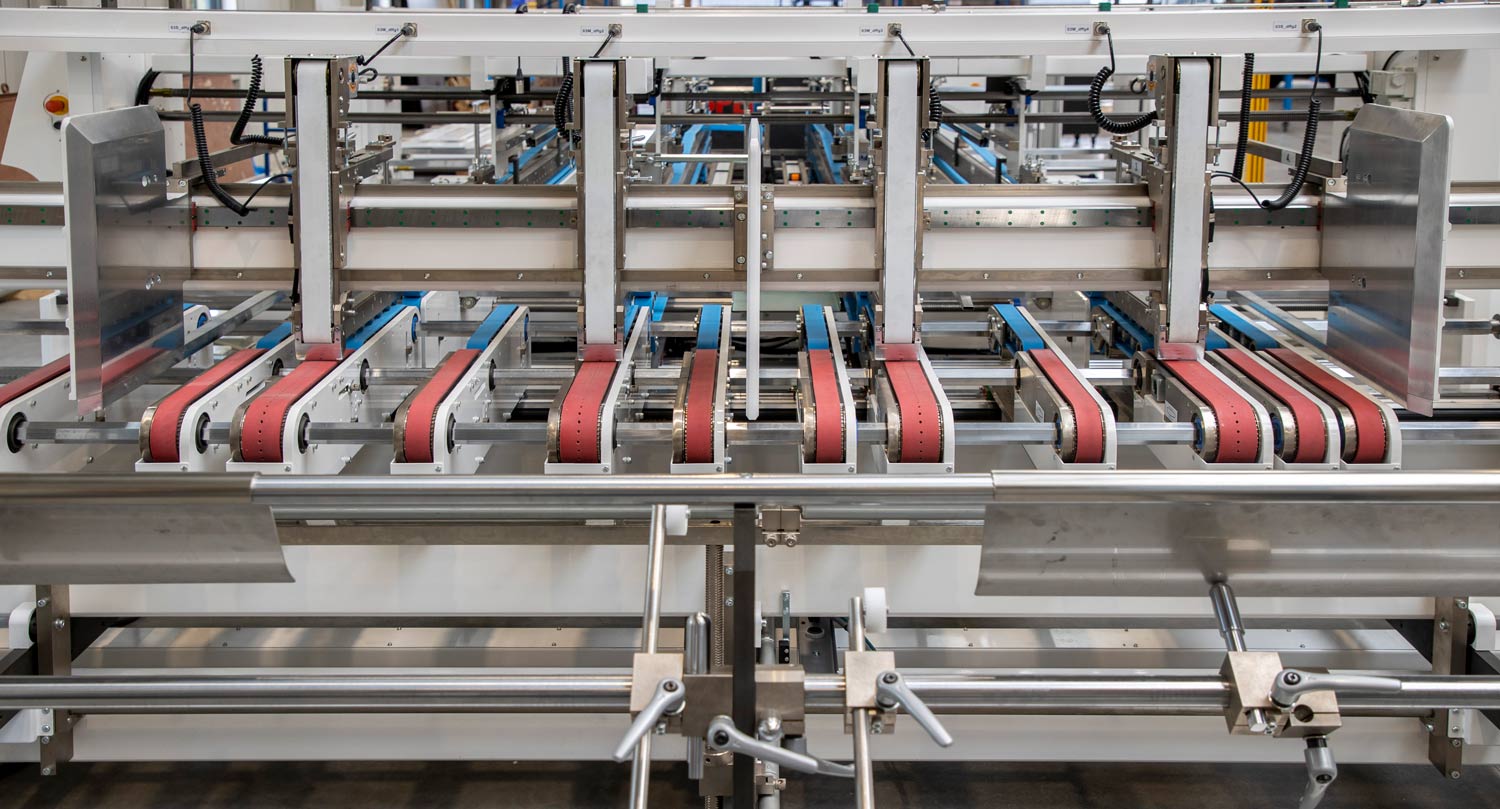

The JD FUZR accurately joins two blanks, each up to 1600 mm wide, to create one carton with a total width of up to 3200 mm. This allows manufacturers to produce larger and stronger packaging without investing in wider die cutting or printing equipment.
The machine can process blanks of different sizes and is suitable for preprinted and laminated board. Integrated glue control and glue detection support consistent application and reliable production. Automatic frame adjustment and controlled blank feeding help reduce setup time and improve accuracy.
Integrated safety light curtains help protect the operator during production. Control buttons and emergency stops are positioned within easy reach. The JD FUZR also calculates the required settings for each order and stores approved configurations for future repeat orders.
The machine can be integrated with the Tanabe JD BOXR, connected to folder gluers from other manufacturers or operated as a standalone unit.
Elevate your packaging production with the JD FUZR, an innovative machine designed to seamlessly join two blanks of up to 1600 mm wide into one larger carton.
Create bigger, stronger and wider packaging without investing in wider die cutting or printing machines. The JD FUZR allows you to expand your production capabilities while continuing to use your existing equipment.
Contact us to learn how the JD FUZR can add value to your production process.
The advantage of the JD FUZR
The JD FUZR accurately joins two blanks, each up to 1600 mm wide, to create one carton with a total width of up to 3200 mm. This allows manufacturers to produce larger and stronger packaging without investing in wider die cutting or printing equipment.
The machine can process blanks of different sizes and is suitable for preprinted and laminated board. Integrated glue control and glue detection support consistent application and reliable production. Automatic frame adjustment and controlled blank feeding help reduce setup time and improve accuracy.
Integrated safety light curtains help protect the operator during production. Control buttons and emergency stops are positioned within easy reach. The JD FUZR also calculates the required settings for each order and stores approved configurations for future repeat orders.
The machine can be integrated with the Tanabe JD BOXR, connected to folder gluers from other manufacturers or operated as a standalone unit.
Elevate your packaging production with the JD FUZR, an innovative machine designed to seamlessly join two blanks of up to 1600 mm wide into one larger carton.
Create bigger, stronger and wider packaging without investing in wider die cutting or printing machines. The JD FUZR allows you to expand your production capabilities while continuing to use your existing equipment.
Contact us to learn how the JD FUZR can add value to your production process.
| Max. speed | 200 m/min no fuzing. 100 m/min fuzing |
| Operator side | Standard: left handed (optional: right handed) |
| Max. blank size | 3200 mm wide, 2000 mm long |
| Max. blank size | 2 × 1600 mm (3200 total) wide, 2000 mm long |
| Min. blank size | 600 mm wide, 250 mm long |
| Min. blank size | 2 × 600 mm (1200 total) wide, 250 mm long |
| Max. overlap (Glue lap) | 50 mm |
| Min. overlap (Glue lap) | 20 mm |
| Available standard sizes. Additional sizes on request. |
20, 25, 30, 35, 40, 50 mm (± 5 mm adjustable) |
| Flute grades | A, B, C, E, BC, EB flute (1,5–6,6 mm) |
Recycle
Avoid wasting equipment by replacing the (obsolete) controls.
Safe work environment
Safety light curtains, area scanners, up to date e-stop system and safe torque off motor drives for a safe work environment.
Automatic calculation
Automatic calculation of the transport positions, glue, backfold and other settings and store the perfect setting in the memory.
